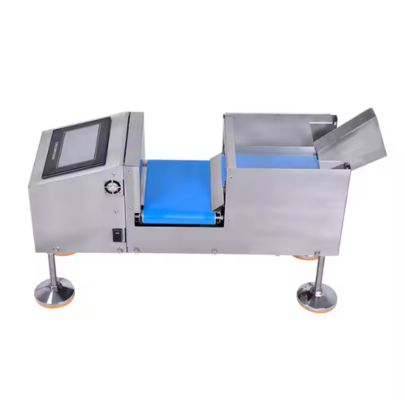

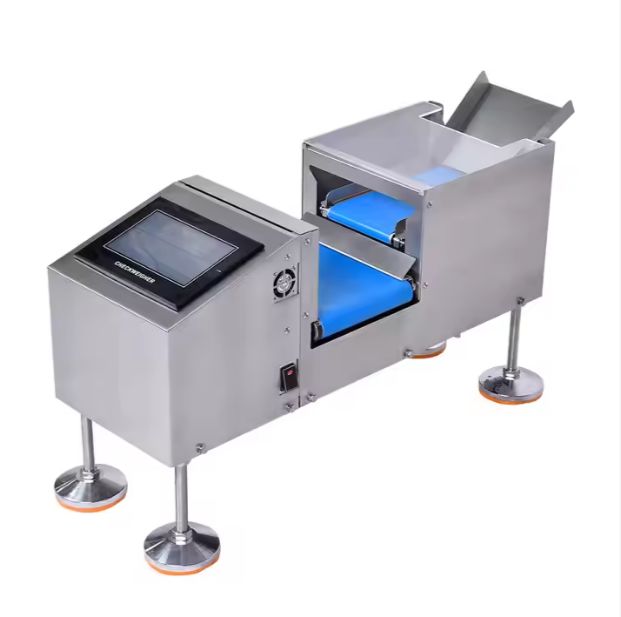

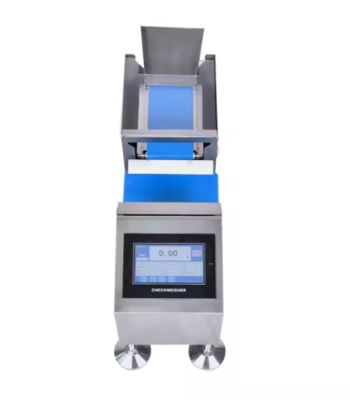

| Place of Origin: | CHINA |
| Model Number: | Checkweigher Integration in Packaging Lines |
| Minimum Order Quantity: | 1 set |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Caron box |
| Delivery Time: | 10-30days |
| Supply Ability: | 2000 set per month |
| 제품: | 포장 라인의 CheckWeigher 통합 | 컨베이어 너비: | 200-1200mm |
|---|---|---|---|
| 벨트 속도 동기화: | 5–120 m/분 | 제품 간격: | 최소 품목들 사이에 50mm |
| 전원 공급 장치: | 400V/50Hz 또는 480V/60Hz | I/O 신호: | 24VDC (16DI/8DO 최소) |
| 커뮤니케이션 프로토콜: | 이더넷/IP, Profinet, Modbus TCP | 정확도 클래스: | y (b) ~ y (a) (0.1g – 0.001g) |
| 최대 처리량: | 50–800 항목/분 | 거부 유형: | 공압/공기 나이프/디버터 |
| 거부 속도: | <10ms 활성화 시간 | 데이터 샘플링 속도: | 500–1000Hz |
| ERP/MES 연결: | SAP/Oracle/Rockwell | 작동 온도: | 0–50 ° C |
| IP 등급: | IP54 – IP69K | 안전 무결성 수준 (SIL): | SIL-2 |
| 비상 정지 반응: | <500ms 전체 정지 | ||
| 강조하다: | automated checkweighing machine,automatic checking weigher for manufacturing,precision checkweigher |
||
| Attribute | Value |
|---|---|
| Conveyor Width | 200–1200mm |
| Belt Speed Synchronization | 5–120 m/min |
| Product Spacing | Min. 50mm between items |
| Power Supply | 400V/50Hz or 480V/60Hz |
| I/O Signals | 24VDC (16DI/8DO minimum) |
| Communication Protocols | Ethernet/IP, PROFINET, Modbus TCP |
| Accuracy Class | Y(b) to Y(a) (0.1g–0.001g) |
| Maximum Throughput | 50–800 items/min |
| Rejection Type | Pneumatic/Air Knife/Diverter |
| Rejection Speed | <10ms activation time |
| Data Sampling Rate | 500–1000Hz |
| ERP/MES Connectivity | SAP/Oracle/Rockwell |
| Operating Temperature | 0–50°C |
| IP Rating | IP54–IP69K |
| Safety Integrity Level (SIL) | SIL-2 |
| Emergency Stop Reaction | <500ms full stop |
Modern packaging lines increasingly incorporate automated checkweighers as mission-critical quality control stations that verify product weight compliance while maintaining production flow. Proper integration ensures:
Properly integrated checkweighers become neural hubs in smart packaging lines, delivering both quality assurance and operational intelligence. The integration strategy must balance mechanical precision, data integrity, and production ecology to achieve true Industry 4.0 performance.
