| Place of Origin: | CHINA |
| Model Number: | Checkweighers in Chemical and Bulk Processing |
| Minimum Order Quantity: | 1 set |
|---|---|
| 가격: | 협상 가능 |
| Packaging Details: | Caron box |
| Delivery Time: | 10-30days |
| Supply Ability: | 2000 set per month |
| 제품: | 화학 및 벌크 가공의 체크 요인 | 용량 범위: | 100g - 50,000kg |
|---|---|---|---|
| 정확도 클래스: | IIIL (± 0.1%)에서 I (± 0.005%) | 최소 부서 (D): | 0.1g - 100g |
| 재료 접촉 표면: | Hastelloy C-276/PTFE/316L SS | 인클로저 등급: | IP66/IP69K |
| 컨베이어 유형: | 스테인리스 메쉬/PTFE 벨트 | 인증: | ATEX Zone 1/21, Class I Div 1 |
| 온도 클래스: | T1-T6 (85 ° C-450 ° C) | 보호 방법: | EX D/E (Flameproof) |
| 최대 처리량: | 1 - 1000 t/h | 재료 밀도 범위: | 0.02 - 3.0 g/cm³ |
| 거부 시스템: | 공압 플랩/전환 암 | 작동 온도: | -40 ° C ~ +85 ° C |
| 습도 범위: | 0 - 95% RH (응축) | 진동 저항: | 5 - 2000 Hz, 2g 가속도 |
| 감사 트레일: | 21 CFR 파트 11 호환 | 통신 프로토콜: | Profisafe, Ethercat 안전 |
| ERP 통합: | SAP PM, OSISOFT PI | ||
| 강조하다: | compliant automated checkweigher,regulated industry checkweighing solutions,Mettler Toledo load cell checkweigher |
||
| Attribute | Value |
|---|---|
| Capacity Range | 100g – 50,000kg |
| Accuracy Class | IIIL (±0.1%) to I (±0.005%) |
| Minimum Division (d) | 0.1g – 100g |
| Material Contact Surfaces | Hastelloy C-276/PTFE/316L SS |
| Enclosure Rating | IP66/IP69K |
| Conveyor Type | Stainless mesh/PTFE belt |
| Certification | ATEX Zone 1/21, Class I Div 1 |
| Temperature Class | T1-T6 (85°C – 450°C) |
| Protection Method | Ex d/e (Flameproof) |
| Max Throughput | 1 – 1000 t/h |
| Material Density Range | 0.02 – 3.0 g/cm³ |
| Rejection System | Pneumatic flap/divert arm |
| Operating Temperature | -40°C to +85°C |
| Humidity Range | 0 – 95% RH (condensing) |
| Vibration Resistance | 5 – 2000 Hz, 2g acceleration |
| Audit Trail | 21 CFR Part 11 compliant |
| Communication Protocols | PROFIsafe, EtherCAT Safety |
| ERP Integration | SAP PM, OSIsoft PI |

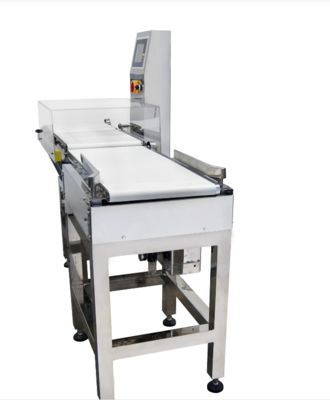

Checkweighers in chemical and bulk processing ensure accurate formulation, regulatory compliance, and safe handling of hazardous or high-value materials. These systems must meet strict standards for:
| Parameter | Standard Model |
|---|---|
| Capacity Range | 100g - 50,000kg |
| Accuracy Class | IIIL (±0.1%) to I (±0.005%) |
| Minimum Division (d) | 0.1g - 100g |
| Material Contact Surfaces | Hastelloy C-276/PTFE/316L SS |
| Enclosure Rating | IP66/IP69K |
| Conveyor Type | Stainless mesh/PTFE belt |
| Certification | ATEX Zone 1/21, Class I Div 1 |
| Temperature Class | T1-T6 (85°C - 450°C) |
| Protection Method | Ex d/e (Flameproof) |
