| 원래 장소: | 중국 |
| 모델 번호: | X-레이 검사 기능이 있는 계량선별기 조합 |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카론 박스 |
| 배달 시간: | 10-30 일 |
| 공급 능력: | 한 달에 2000 세트 |

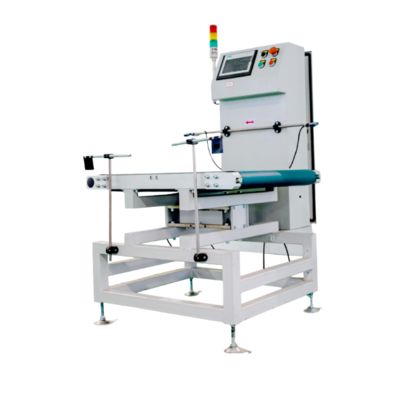

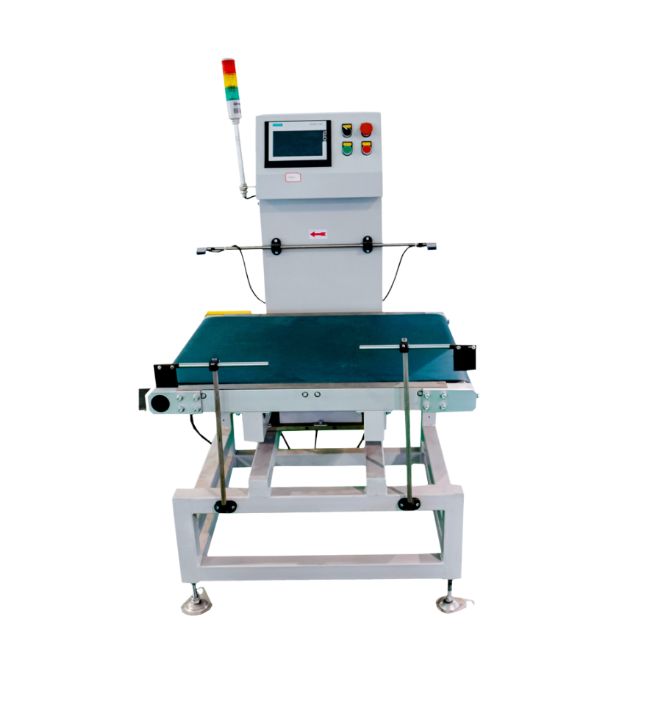

| Product: | Checkweigher Combinations with X-ray Inspection | X-ray Tube: | 160kV microfocus (0.4mm focal spot) |
|---|---|---|---|
| Detector Array: | 64-bit dual-energy L-shaped configuration | Maximum Energy: | 160kV/1.0mA (adjustable in 1kV increments) |
| Penetration Capacity: | 15mm steel equivalent at 160kV | Image Resolution: | 0.4mm/pixel at 50m/min |
| Capacity: | 1g-30kg | Accuracy: | ±0.1g or ±0.1% (whichever is greater |
| Resolution: | 0.01g | Weighing Speed: | Up to 600ppm (product-dependent) |
| Diverter Gate: | 300ppm | Robotic Arm: | Robotic Arm |
| Pneumatic Blow-off: | 600ppm | Belt Lift: | 200ppm |
| 강조하다: | Checkweigher with X-ray inspection,Combination checkweigher load cell,X-ray inspection checkweigher system |
||
| Attribute | Value |
|---|---|
| X-ray Tube | 160kV microfocus (0.4mm focal spot) |
| Detector Array | 64-bit dual-energy L-shaped configuration |
| Maximum Energy | 160kV/1.0mA (adjustable in 1kV increments) |
| Penetration Capacity | 15mm steel equivalent at 160kV |
| Image Resolution | 0.4mm/pixel at 50m/min |
| Capacity | 1g-30kg |
| Accuracy | ±0.1g or ±0.1% (whichever is greater) |
| Resolution | 0.01g |
| Weighing Speed | Up to 600ppm (product-dependent) |
| Diverter Gate | 300ppm |
