C23 PlusLine Checkweigher Optimized for Food, Beverage Pharmaceutical Applications

C23 PlusLine Checkweigher Optimized for Food, Beverage Pharmaceutical Applications

제품 상세 정보:
원래 장소: 중국
브랜드 이름: Mettler Toledo
모델 번호: C23 플러스 라인 체크 웨이거
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 카론 박스
Delivery Time: 10-30days
공급 능력: 한 달에 2000 세트
접촉
상세 제품 설명
제품: C23 플러스 라인 체크 웨이거 포장 유형: 가방, 병, 묶음, 판지, 상자, 케이스, 팔레트
검사 응용 프로그램: 완전성 검사 체중 제어 제품 특성: 냉동, 건조, 무거운 무게 패키지, 키가 큰 단단한 용기
산업: 화학, 식음료, 금속, 플라스틱 및 전자 제품, 제약 및 생명 공학, 운송 및 물류 산업 부문: 농업 및 벌크 식품, 자동차, 빵집 및 제과, 맥주, 와인 및 기타 알코올 음료, 벌크 화학 물질
최대 제품 체중: 80 KG 최대 라인 속도: 150 M/Min
최대 처리량: 150 ppm 제품 플로우: 컨베이어
강조하다:

C23 PlusLine food checkweigher

,

beverage checkweigher with load cell

,

pharmaceutical checkweigher

C23 PlusLine Checkweigher Optimized for Food, Beverage & Pharmaceutical Applications
Product Attributes
Attribute Value
Product C23 PlusLine Checkweigher
Packaging Type Bags, Bottle, Bundles, Cardboard, Cartons, Cases, Pallets
Inspection Application Completeness Check Weight Control
Product Characteristic Deep Frozen, Dry, Heavy Weight Packages, Tall Rigid Containers
Industry Chemical, Food & Beverage, Metal, Plastic and Electronics Components, Pharma & Biotech, Transport and Logistics
Industry Segment Agriculture and Bulk Foods, Automotive, Bakery and Confectionery, Beer, Wine and Other Alcoholic Beverages, Bulk Chemicals
Max Product Weight 80 kg
Max Line Speed 150 m/min
Max Throughput 150 ppm
Product Flow Conveyor
Product Description

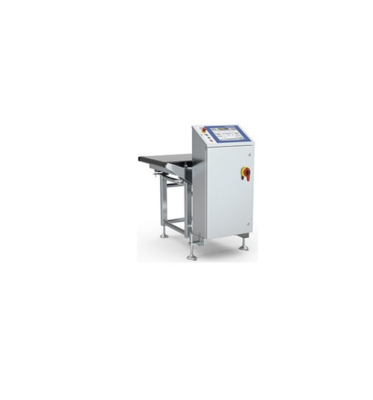

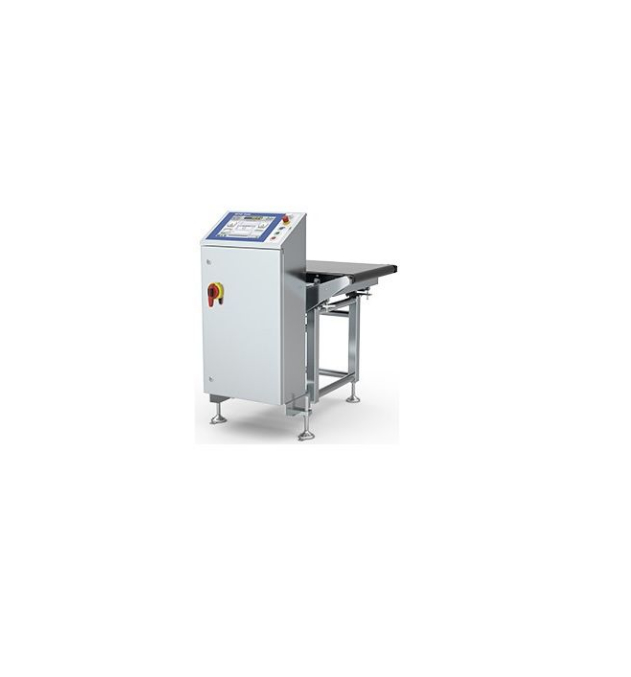

The C23 PlusLine Checkweigher is a highly versatile and robust system engineered for accurate weight control of heavy products in challenging industrial environments. It's designed for scalability and flexibility, allowing it to be customized to meet specific application needs in food, chemical, and logistics sectors.

Key Features
  • Scalable Weighing Solution: Compact and easy to operate, designed for high accuracy weight control of heavy loads up to 80 kg
  • Configurable to Customer Needs: Modular design offers full configurability including mechanical design, software functionality and data communication
  • Weighing Performance Options: Choice of standard or high performance load cells available to match your application requirements
  • Built for Challenging Environments: Designed for endurance and maximum reliability in dry, dusty or wet environments with IP54 or IP65 rating
Technical Specifications
Material No: 2400230000
IP Rating: IP54, IP65
Compatible Software: ProdX
Connectivity: Fieldbus, OPC UA
Inspection Solution: Checkweighing
Max Product Width: 1,100 mm
Max Weighing Zones: 7
Weighing Technology: Strain Gauge
HMI: 12" Touchscreen, 7" Touchscreen
Weighing Accuracy: from ±5 g
