| 원래 장소: | 중국 |
| 브랜드 이름: | Mettler Toledo |
| 모델 번호: | 계량 모듈 SWC615 PM SS 90T S3A |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카론 박스 |
| 배달 시간: | 10-30days |
| 공급 능력: | 달 당 2000 세트 |
| 제품: | 메틀러 톨레도 로드 셀 | 최대 용량: | 198,000 파운드 (90,000 kg) |
|---|---|---|---|
| 소재: | 스테인레스 스틸, 등급 304 | 도량형학: | OIML C3, NTEP IIIL 10,000 |
| 부하전지: | PowerCell PDX | 정확성: | 기준 |
| 보호 등급: | IP68/69K | 환경 / 재료: | 세척 / 스테인레스 스틸 |
| 위험한 승인: | ATEX Zone 2 / 22 UL Division 2 | 중요성: | 컨디션 모니터링 |
| 강조하다: | 90 ton heavy-duty load cell,SWC615 PM S3A load cell,stainless steel load cell module |
||

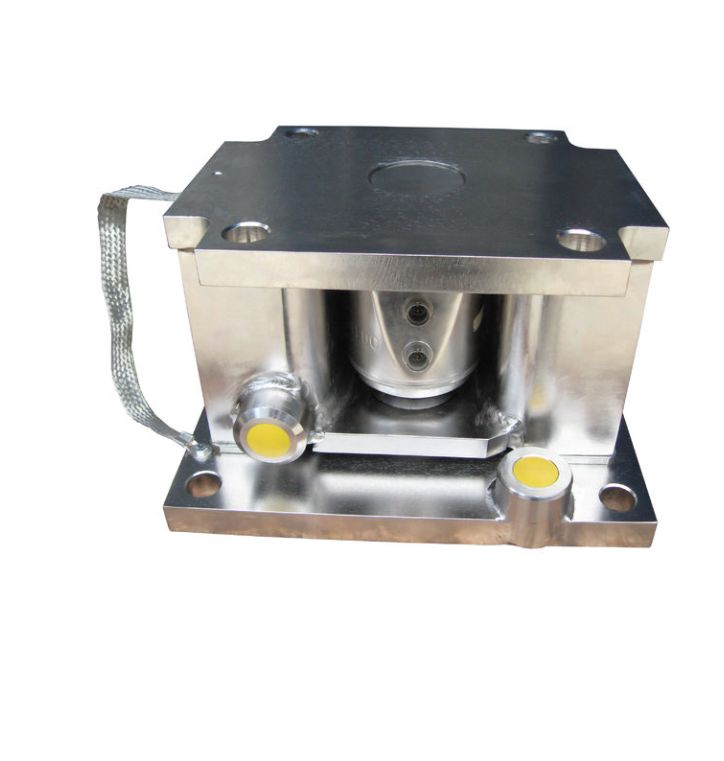

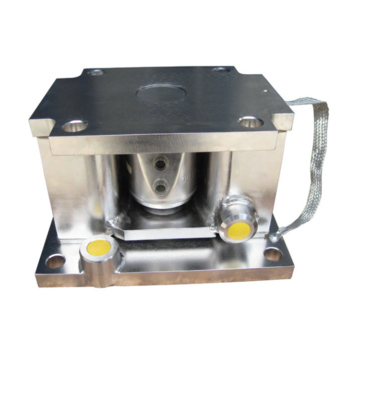

A robust compression weigh module designed for direct attachment to ground, piers, or structural beams. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.
Suitable for static & dynamic tanks, hoppers, mixers, and conveyors. Features a high-accuracy, fully approved stainless hermetic load cell for all industrial applications.
Includes 360° self-checking, dual lift-off & down-stops, ground strap, hazardous area approvals, and IP68-rated stainless steel load cell for maximum reliability.
Monitors individual load cells for overload conditions, temperature fluctuations, breach detection, and zero drift to prevent system failures and measurement errors.
| Material | Stainless steel, grade 304 |
| Material Number | 30057237 |
| Maximum Capacity | 198,000 lb (90,000 kg) |
| Protection Rating | IP68/69k |
| Environment/Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX Zone 2/22, UL Division 2 |
| Load Cell | POWERCELL PDX |
| Accuracy | Standard |
| Metrology Certification | OIML C3, NTEP IIIL 10,000 |
