| 원래 장소: | 중국 |
| 브랜드 이름: | Mettler Toledo |
| 모델 번호: | Module SWB505 MM SS316 2.2T EN1090의 체중 |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카론 박스 |
| 배달 시간: | 10-30days |
| 공급 능력: | 달 당 2000 세트 |
| 제품: | 메틀러 톨레도 로드 셀 | 최대 용량: | 5,000 파운드 (2,200kg) |
|---|---|---|---|
| 소재: | 316 스테인레스 스틸 | 도량형학: | NTEP III 5M, OIML C3 |
| 케이블: | 5 Ｍ | 정확성: | 기준 |
| 보호 등급: | IP68/69K | 환경 / 재료: | 빈번한 세척 / 위생 |
| 위험한 승인: | ATEX, FM, CFM | 중요성: | 기준 |
| 강조하다: | carbon steel load cell module,2.2 ton load cell,EN1090 compliant load cell |
||

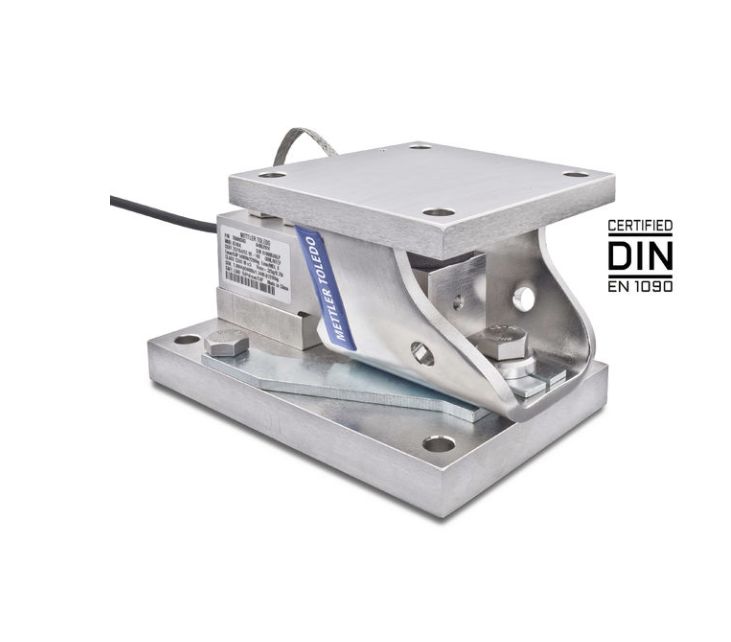

The SWB505 compression weigh module is engineered with carbon steel construction and a 2.2 ton capacity, compliant with EN1090 standards. Its design allows direct attachment to ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.
Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.
Features 360° checking, built-in anti-uplift and down stops, along with hazardous area approvals and IP68-rated stainless steel load cell for reliable operation.
Simplified alignment for installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.
| Material | 316 Stainless steel |
| Maximum Capacity | 5,000 lb (2,200 kg) |
| Protection Rating | IP68/69k |
| Environment | Frequent wash-down / Hygienic |
| Hazardous Approvals | ATEX, FM, cFM |
| Cable Length | 5 m |
| Accuracy | Standard |
| Metrology | NTEP III 5M, OIML C3 |
