| 원래 장소: | 중국 |
| 브랜드 이름: | Mettler Toledo |
| 모델 번호: | Module Module SWB505 SS 10kg |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카론 박스 |
| 배달 시간: | 10-30days |
| 공급 능력: | 달 당 2000 세트 |
| 제품: | 메틀러 톨레도 로드 셀 | 최대 용량: | 22 파운드 (10kg) |
|---|---|---|---|
| 소재: | 스테인레스 스틸 V2A (AISI 304) | 도량형학: | NTEP III 5M OIML C3 |
| 부하전지: | MTB, 3m 케이블 | 정확성: | 기준 |
| 보호 등급: | IP68/69K | 환경 / 재료: | 세척 / 스테인레스 스틸 |
| 위험한 승인: | ATEX, FM, CFM | 중요성: | 기준 |
| 강조하다: | 10kg precision load cell,industrial grade weighing sensor,SS load cell module |
||

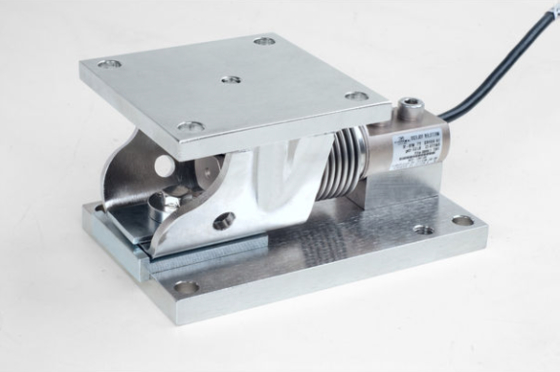

Multipurpose weigh module provides the highest accuracy for both static and dynamic applications. Self-aligning rocker pin ensures repeatability.
Features include 360° checking, built-in anti-uplift and down stops, hazardous area approvals & IP68 stainless steel load cell for peace of mind.
Product is aligned for installation & transition to weighing mode is easy. Minimal lift required to remove load cell.
A compression weigh module designed so that its top plate and base plate compress when weight is applied. Can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing. Capacities range from 3 kg to 300 tons.
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 22 lb (10 kg) |
| Material | Stainless Steel V2A (AISI 304) |
| Metrology | NTEP III 5M OIML C3 |
| Load Cell | MTB, 3 m cable |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment/Material | Wash-down/Stainless Steel |
| Hazardous Approval | ATEX, FM, cFM |
| Criticality | Standard |
