| 원래 장소: | 중국 |
| 브랜드 이름: | Mettler Toledo |
| 모델 번호: | 계량 모듈 0970 500kg C3 NOJ |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카론 박스 |
| 배달 시간: | 10-30days |
| 공급 능력: | 달 당 2000 세트 |
| 제품: | 메틀러 톨레도 로드 셀 | 최대 용량: | 1,120 파운드 (500kg) |
|---|---|---|---|
| 소재: | WM 316L, LC 17-4ph | 도량형학: | NTEP III 5M, OIML C3 |
| 부하전지: | 5m (16.6ft) 케이블 RLC | 정확성: | 높은 |
| 보호 등급: | IP68/69K | 환경 / 재료: | 빈번한 세척 / 위생 |
| 위험한 승인: | atex, fm | 중요성: | 기준 |
| 강조하다: | 500kg weigh module load cell,platform scale weigh module C3,hopper scale load cell NOJ |
||

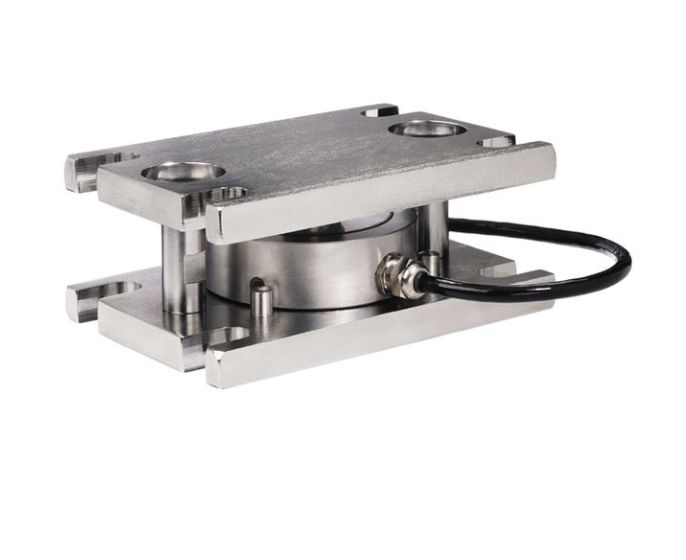

A high-performance compression weigh module designed for precision measurement in industrial weighing applications. The unit features top and base plates that compress under load, enabling direct installation on ground surfaces, piers, or structural beams.
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 1,120 lb (500 kg) |
| Material | WM 316L, LC 17-4PH |
| Metrology | NTEP III 5M, OIML C3 |
| Load Cell | 5m (16.6ft) cable RLC |
| Accuracy | High |
| Protection Rating | IP68/69k |
| Environment | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX, FM |
Primarily used in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Suitable for capacities ranging from 3 kg to 300 tons.
Low profile 316 stainless steel design ensures superior corrosion resistance in demanding industrial environments, including frequent wash-down and hygienic applications.
