| 원래 장소: | 중국 |
| 브랜드 이름: | Mettler Toledo |
| 모델 번호: | Module Module SWC515-A SS 22.5T |
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 카론 박스 |
| 배달 시간: | 10-30days |
| 공급 능력: | 달 당 2000 세트 |
| 제품: | 메틀러 톨레도 로드 셀 | 최대 용량: | 49,500 파운드 (22,500kg) |
|---|---|---|---|
| 소재: | 스테인레스 스틸 V2A (AISI 304) | 도량형학: | NTEP III 5,000D OIML C3 |
| 부하전지: | 12 M 케이블 SLC611 | 정확성: | 기준 |
| 보호 등급: | IP68/69K | 환경 / 재료: | 세척 / 스테인레스 스틸 |
| 위험한 승인: | atex, fm | 중요성: | 기준 |
| 강조하다: | 22.5 ton stainless steel weigh module,SWC515-A load cell with warranty,Mettler Toledo stainless steel load cell |
||

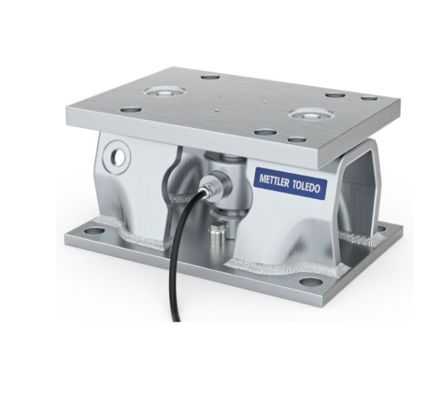

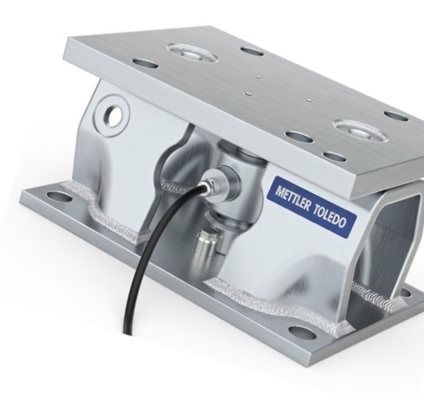

A compression weigh module designed for direct attachment to ground, piers, or structural beams. When weight is applied, the top plate and base plate compress toward each other. Ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications. Capacity ranges from 3 kg to 300 tons.
For static & dynamic tanks, hoppers, mixers & conveyors. Features a high accuracy, fully approved stainless hermetic load cell suitable for all applications.
Includes mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells for maximum reliability.
Fast and straightforward installation without damaging the Load Cell, thanks to the SafeLock™ plates. Integrated space for hydraulic jack included.
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 49,500 lb (22,500 kg) |
| Material | Stainless Steel V2A (AISI 304) |
| Metrology | NTEP III 5,000d OIML C3 |
| Load Cell | 12 m cable SLC611 |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Wash-down / Stainless Steel |
| Hazardous Approval | ATEX, FM |
| Criticality | Standard |
